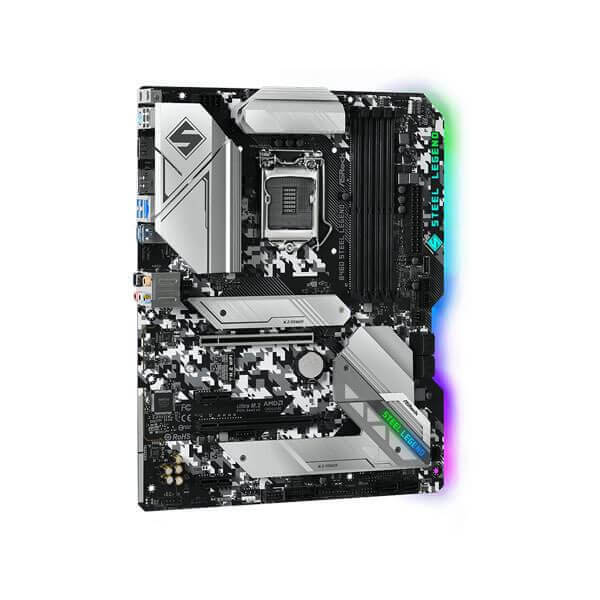

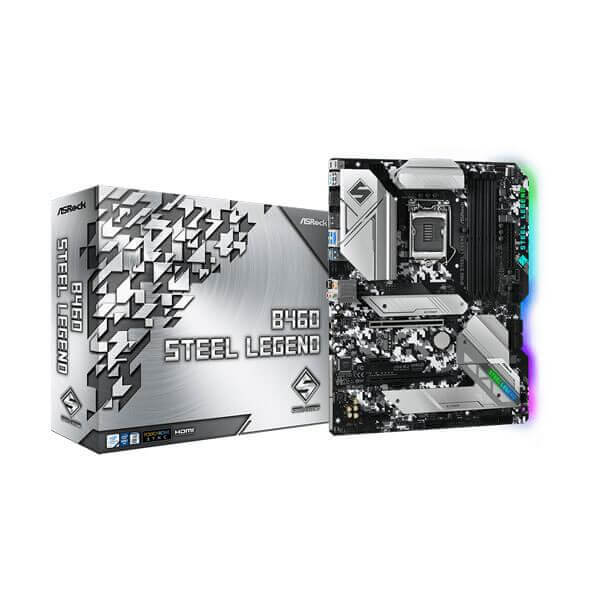

Asrock B460 Steel Legend Motherboard

₹11,200.00

Add to compare
Add to wishlist
Category: Tags: , ,
Description

Features

B460 Steel Legend

  • Supports 10th Gen Intel® Core™ Processors (Socket 1200)
  • 9 Phase Dr.MOS Power Design
  • Supports DDR4 2933MHz
  • 2 PCIe 3.0 x16, 2 PCIe 3.0 x1, 1 M.2 (Key E) For WiFi
  • AMD CrossFireX™
  • Graphics Output Options: HDMI, DisplayPort
  • 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio
  • 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3), 1 Ultra M.2 (PCIe Gen3 x4)
  • 7 x USB 3.2 Gen1 (1 Rear Type-C, 3 Rear Type-A, 2 Front, 1 Front Type-C)
  • Dragon 2.5 Gigabit LAN
  • ASRock Polychrome SYNC

Specifications

 Unique Feature

 ASRock Super Alloy

  • XXL Aluminum Alloy Heatsink
  • Premium 60A Power Choke
  • 50A Dr.MOS
  • Combo Caps (Nichicon 12K Black Caps)
  • Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
  • Shaped PCB Design
  • Matte Black PCB
  • High Density Glass Fabric PCB 2.5G LANASRock Steel Slots.

 ASRock Full Coverage M.2 Heatsink

 ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)

 ASRock POST Status Checker (PSC)

 ASRock Full Spike Protection (for all USB, Audio, LAN Ports)

 ASRock Live Update & APP Shop
 CPU
  •  Supports 10th Gen Intel® Core™ Processors (Socket 1200)
  • Digi Power design
  • 9 Power Phase design
  • Supports Intel® Turbo Boost Max 3.0 Technology
 Chipset
  •  Intel® B460
 Memory
  •  Dual Channel DDR4 Memory Technology
  • 4 x DDR4 DIMM Slots
  • Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory*
  • Supports ECC UDIMM memory modules (operate in non-ECC mode)
  • Max. capacity of system memory: 128GB**
  • Supports Intel® Extreme Memory Profile (XMP) 2.0
  • 15μ Gold Contact in DIMM Slots

 *Please refer to Memory Support List on ASRock’s website for more information.Core™ (i9/i7) support DDR4 up to 2933; Core™ (i5/i3), Pentium® and Celeron® support DDR4 up to 2666.

 **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
 BIOS
  •  128Mb AMI UEFI Legal BIOS with multilingual GUI support
  • ACPI 6.0 Compliant wake up events
  • SMBIOS 2.7 Support
  • CPU Core/Cache, GT, DRAM, PCH, VCCST, VCCSA Voltage Multi-adjustment
 Graphics
  • &n
